Introduction: Protecting Your Assets from the Unpredictable
In an era of increasing extreme weather events, flash floods have become a significant threat to residential and commercial properties alike. Aluminum Flood Barriers have emerged as the gold standard for flood protection due to their lightweight nature, extreme durability, and rapid deployment capabilities. But how do you choose the right one? This guide covers everything from precision sizing to advanced sealing technologies.
The Power of Material: Why Aluminum?
Not all flood barriers are created equal. We utilize High-Grade 6063-T5 Aluminum Alloy.
Corrosion Resistance: Unlike steel, aluminum won’t rust, even after prolonged exposure to saltwater or rain.
Lightweight Strength: A single person can often deploy the modular planks without heavy machinery.
Modular Design: Stackable panels allow you to customize the protection height based on the specific flood risk.
Sizing Guide: Getting the Perfect Fit
A flood barrier is only as good as its fit. To order the correct size, you must measure:
Opening Width: Measure the wall-to-wall distance of your doorway, garage, or driveway.
Required Height: Based on local historical flood levels, choose a height (usually increments of 200mm per panel).

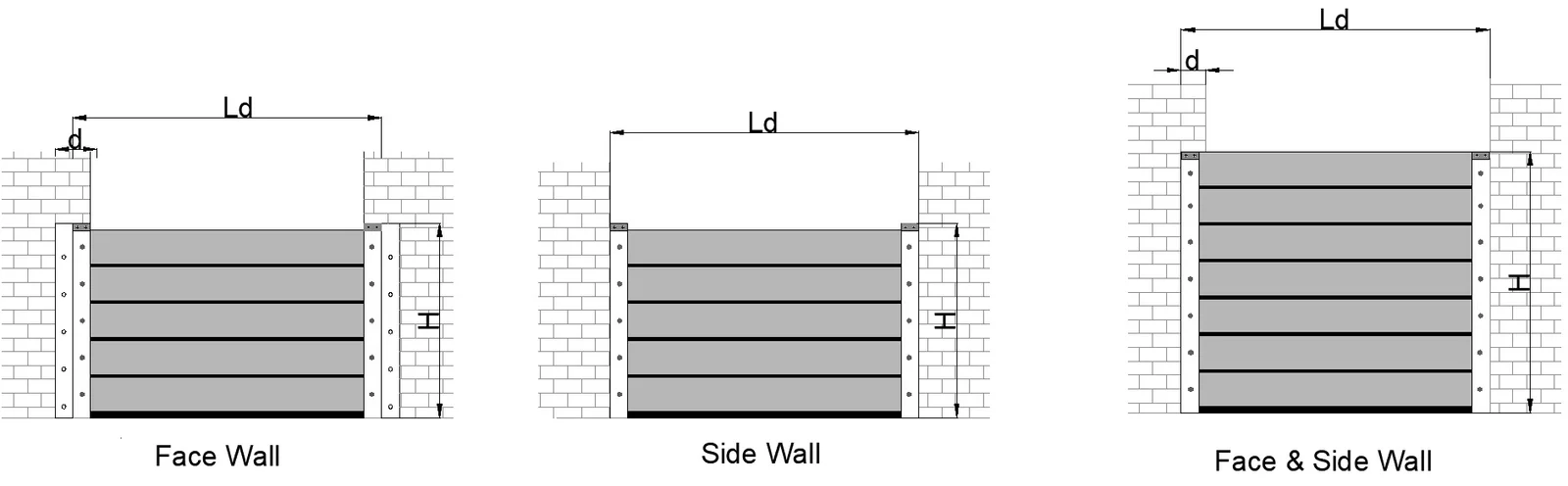

Mounting Type:
In-set Mounting: Installed within the door frame.
Face Mounting: Installed on the outer wall surface.
Advanced Sealing Technology: The EPDM Advantage

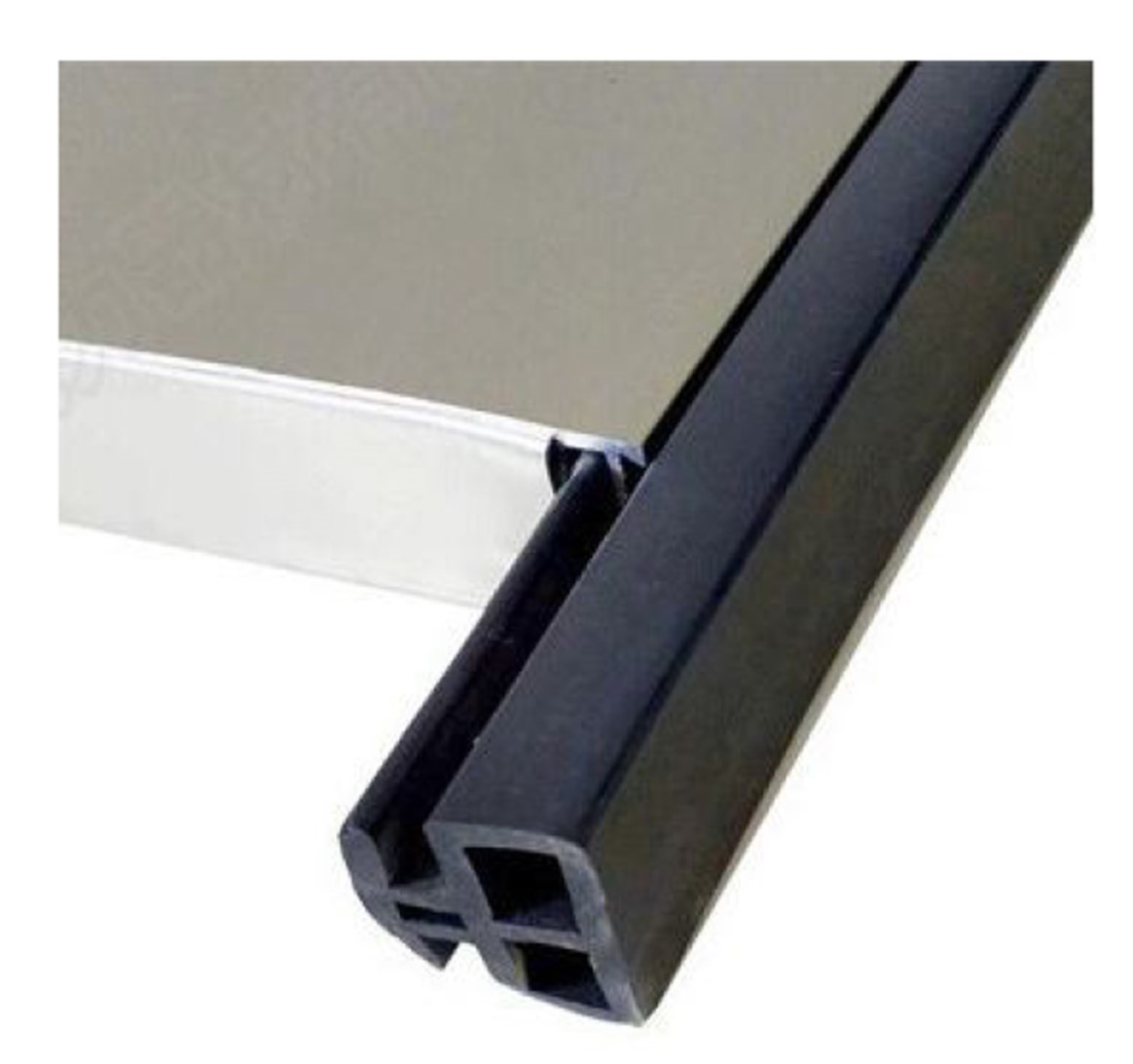

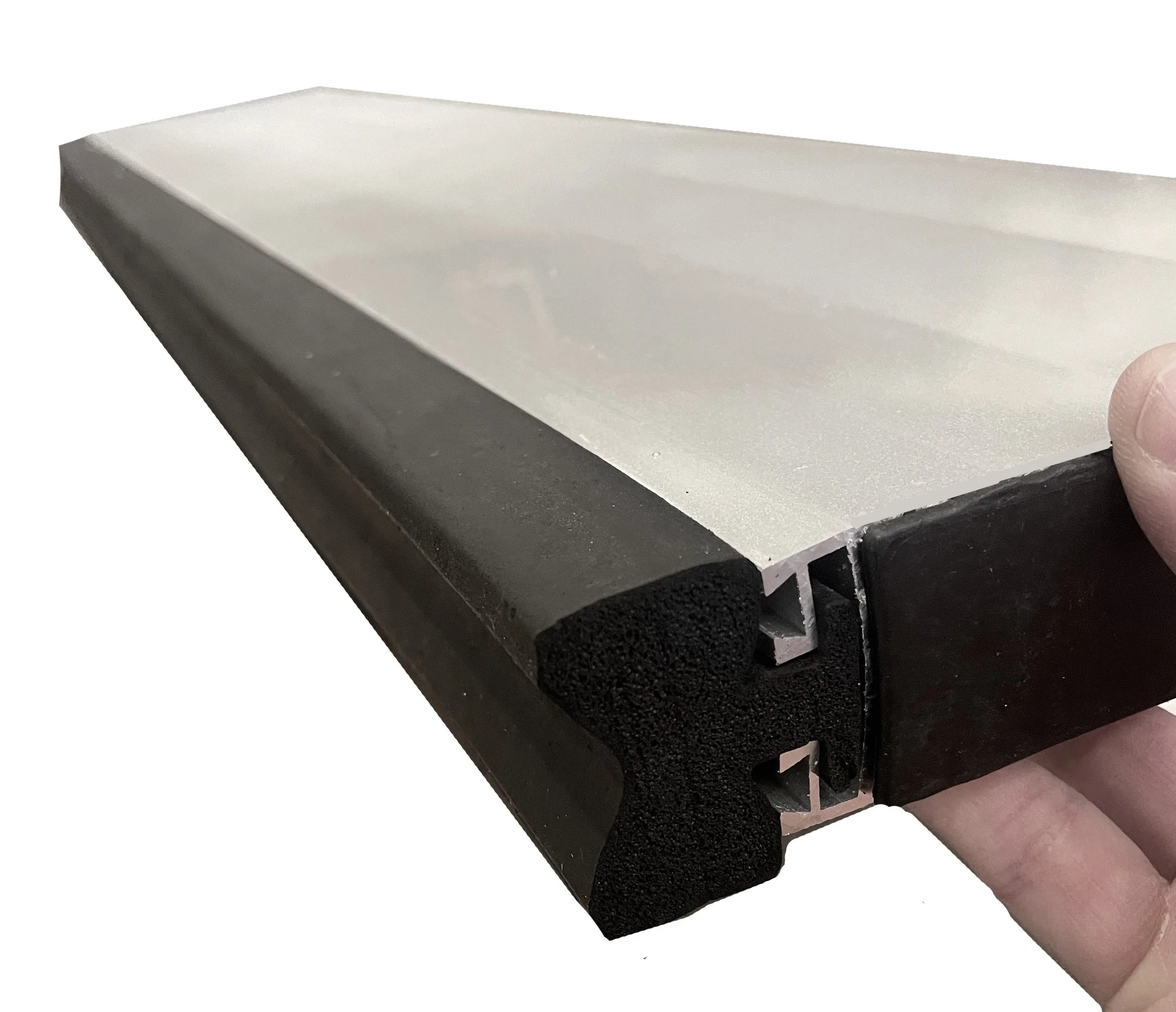

The secret to a 100% watertight seal lies in the gaskets. Our barriers feature EPDM (Ethylene Propylene Diene Monomer) rubber seals on the bottom and between each plank.
Triple-Seal Logic: We use side-column seals, bottom compression seals, and inter-panel gaskets.
Compression Mechanism: Our side pillars feature a “down-pressure” locking system that forces the panels into the seals, ensuring no leakage even under high water pressure.

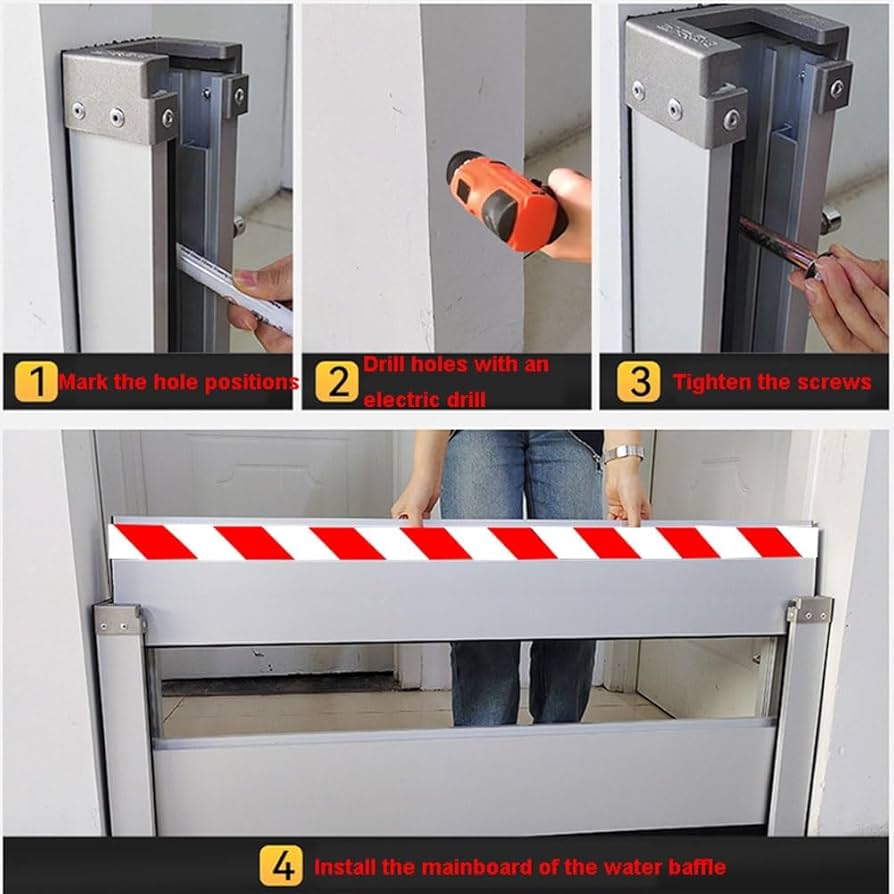

Installation Guide: Rapid Response
When a storm hits, every second counts.
- Fixed Side Tracks: Permanently bolt the aluminum U-channels to your walls.

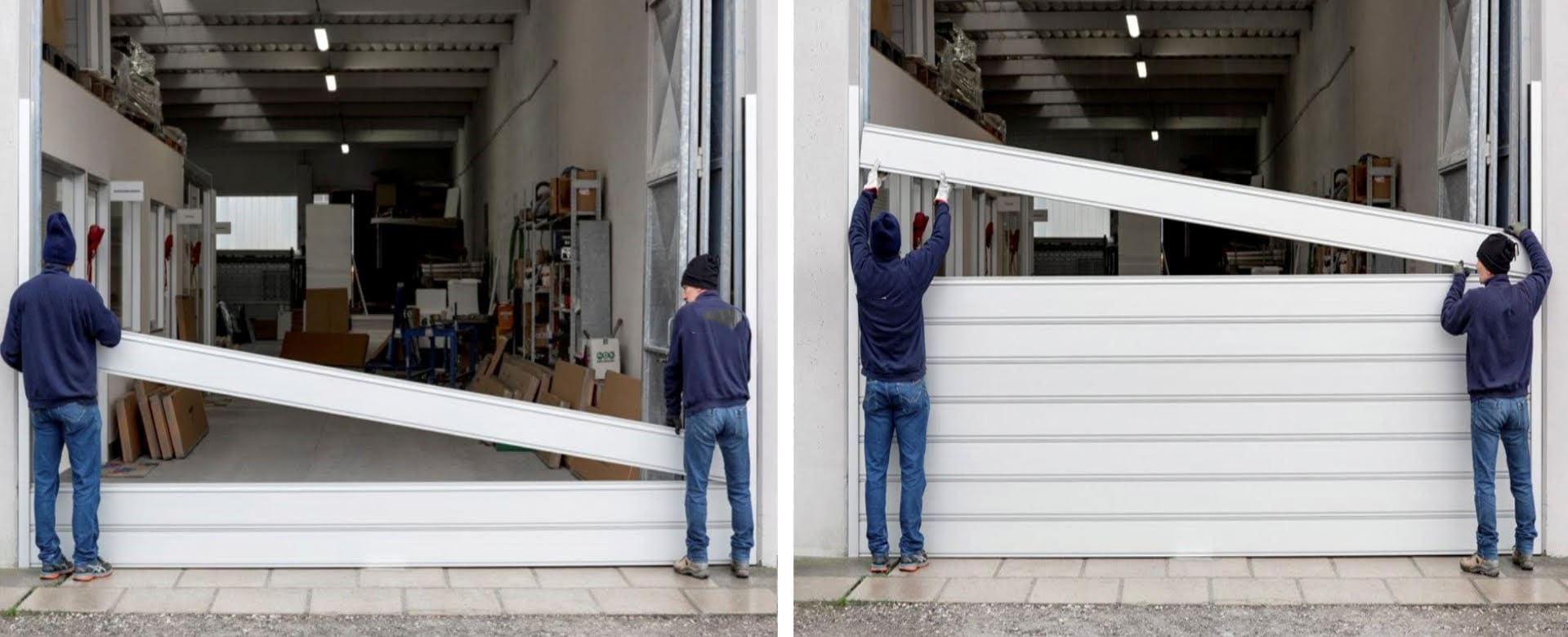

- Slide and Stack: When a flood warning is issued, slide the aluminum planks into the tracks.
- Lock Down: Tighten the top pressure bolts to compress the gaskets.
- Storage: When the sun comes out, simply stack the planks in a storage bracket.
Why Partner with Us for Your Flood Defense?
As a leading manufacturer, we provide:
Customization: Bespoke sizes for everything from a standard front door to a massive warehouse bay.
Global Shipping: Certified packaging for international sea and air freight.
Quality Certification: Our barriers are tested against hydrostatic pressure to ensure safety.
Contact us today for a free quote and technical consultation!
